Irving Jensen's References 2

20 October 2004

Thumbnails of more reference images are posted below. Click on a thumbnail to see the high resolution version, file sizes as shown. These are rendered at high resolution so you can zoom in for details.

The four 5 foot hat racks shown in the first two images are the best I could find, but only one escaped cover damage.

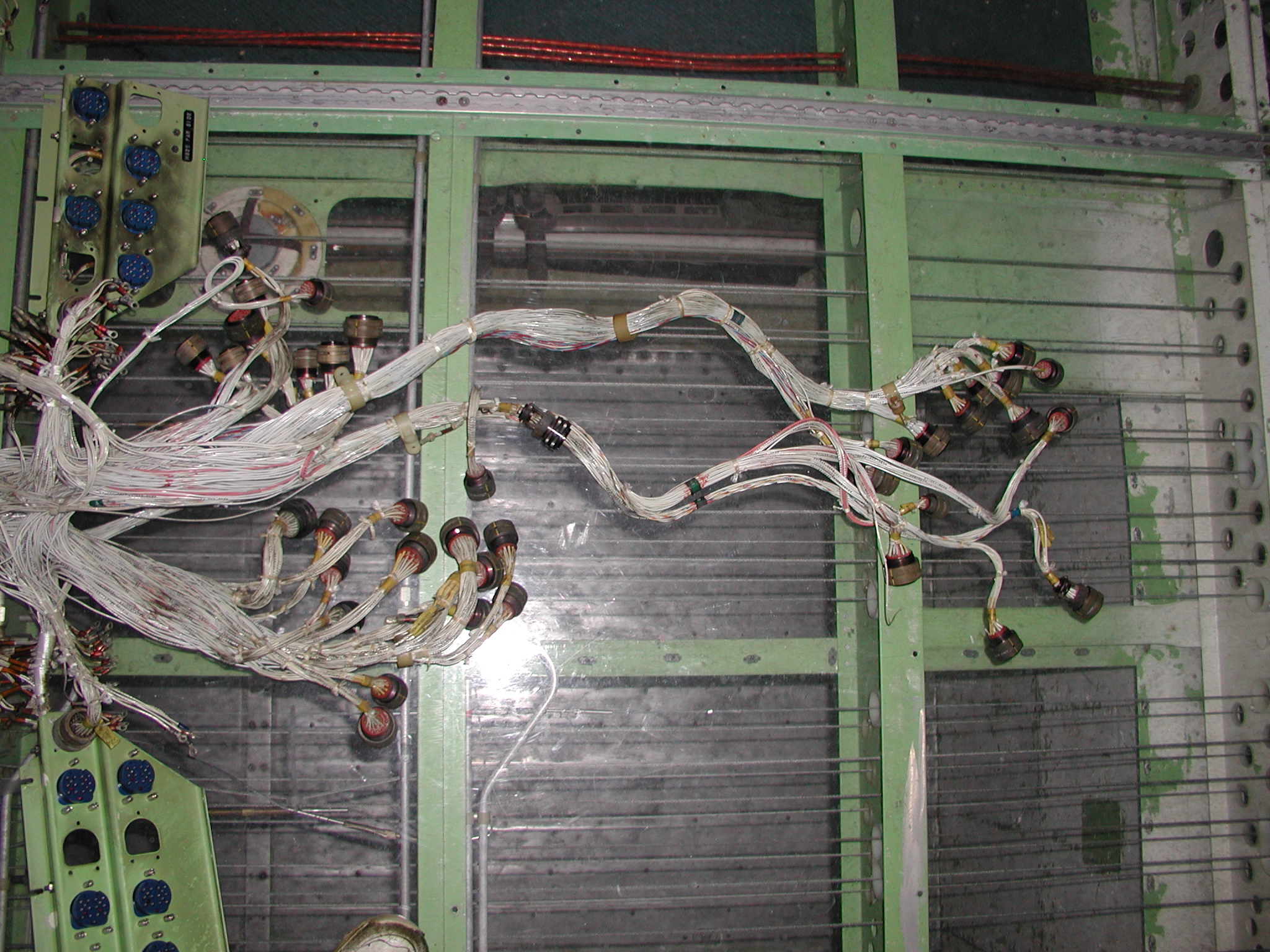

The original P5 panel shown had to be retired from my project because the many cut wires for the illumination system controls rendered it unusable. But the portions of the harness that utilize the round Amp connectors are mostly intact. However, I may need to remove four or five of the Amp connectors with their associated harness sections because my replacement P5 panel isn't an exact match, and is missing those connectors and their associated harness sections.

The PSUs shown in the last three images have all been pressure washed, and are awaiting hand cleaning of the brown stains on the cover (a relatively easy task), and in some cases replacement of parts (in the center pile in image 13) that came off during pressure washing. Some of the PSUs have an off white color as you can see. Some are missing parts, and some have significant case cracks that render them quite unattractive, though they might be reasonably repairable.

2.2MB	2.1MB	2.3MB	2.3MB	2.2MB
2.3MB	1.5MB	1.7MB	1.7MB	1.7MB
1.7MB	1.7MB	1.8MB	1.5MB
